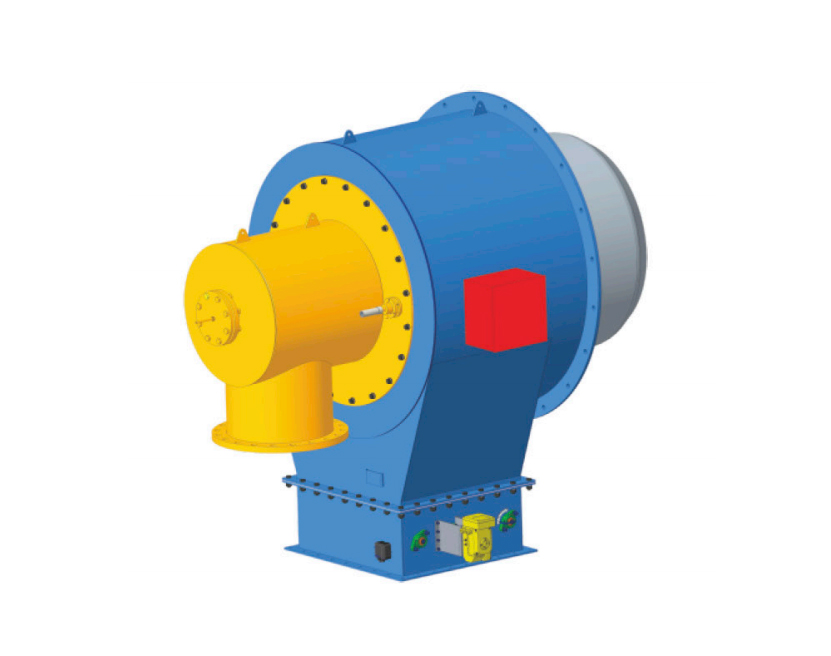

Medium and low calorific value gas burner
Medium and low calorific value gas burner
Product Category:Burner
Medium and low calorific value gas burner refers to a gas fuel with a low calorific value of 650kcal/Nm3~5000kcal/Nm3^, including calorific gas, coke oven gas, producer gas (water gas), artificial biomass gas production and chemical tail gas. On the basis of dynamic diffusion combustion technology, special rapid mixing technology is adopted according to different calorific value to make fuel and air mix efficiently. Digital control technology such as electronic air-fuel proportional regulation is used to make fuel burn efficiently and stably. The products are widely used in industrial boilers, industrial kilns, desulfurization and denitrification flue direct combustion furnace and other heating furnaces.
Product Introduction

1.Product introduction

Medium and low calorific value gas burner refers to a gas fuel with a low calorific value of 650kcal/Nm3~5000kcal/Nm3^, including calorific gas, coke oven gas, producer gas (water gas), artificial biomass gas production and chemical tail gas. On the basis of dynamic diffusion combustion technology, special rapid mixing technology is adopted according to different calorific value to make fuel and air mix efficiently. Digital control technology such as electronic air-fuel proportional regulation is used to make fuel burn efficiently and stably. The products are widely used in industrial boilers, industrial kilns, desulfurization and denitrification flue direct combustion furnace and other heating furnaces.

2.Technical characteristics

• Wide fuel adaptability, can adapt to the heat value of 650kcal/Nm3~5000kcal/Nm3 flammable gas.
• Separate structure is adopted, and the burner, fuel supply system, combustion air system and control system are connected in a certain way.
• The combustion head structure is specially designed according to different heat values of gas, so that gas and air mix quickly and evenly.
• The system can be used to display working conditions, TIS alarm, memory driving and manual sight repair people shed inch words.
• Equipped with electronic proportional modulation system, can realize the full load air-fuel ratio matching reasonable.
• The control program is equipped with multiple safety protection such as pre-furnace and post-furnace air output, fuel pressure and burning monitoring.
• The PLC control system can communicate with the central control PC and accept the instructions of the PC. The gas valve group is equipped with automatic detection and protection of gas valve leakage.
• Gas valve group can choose solenoid valve or pneumatic valve two configurations, and the whole skid assembly factory.

Product parameter introduction

model
fuel type 焦?fàn)t煤氣   Low calorific value4000 kcal/Nm³ TD-JEF-X*
發生爐煤氣   Low calorific value≥1100 kcal/Nm³ TD-FEF-X*
高爐煤氣   Low calorific value≥650 kcal/Nm³ TD-GEF-X*
可燃工業尾氣   Low calorific value changes greatly TD-WEF-X*
Adapted power supply   380V3/N/PE 50Hz or 440V3/N/PE 60Hz
Control mode Electronic air-fuel proportional regulation
Control system configuration PLC(Imported brands: SIEMENS, ABB, etc.)
Gas valve group configuration   Solenoid valve, pneumatic valve
Explosion-proof rating  According to customer on-site requirements
Scope of supply Burner, gas control valve group, combustion fan, ignition assembly and PLC control cabinet
 Note: "X*" in the table is the rated power of the burner, in MW.
