Product category:	burners
Product category: burners
Product Category:Burner

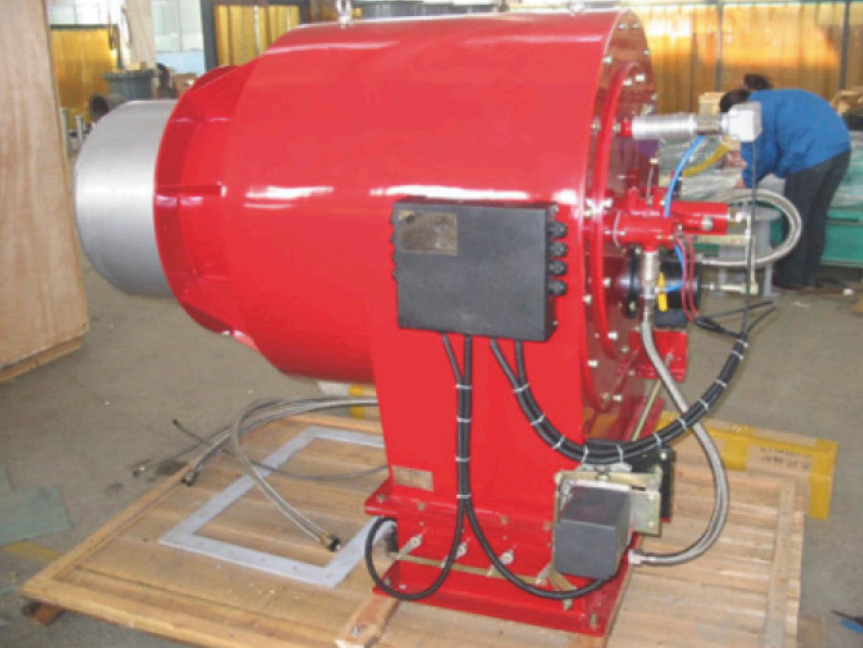

Oil burner refers to the burner in liquid state. Liquid fuels include light diesel oil, heavy oil, residue oil, biomass fuel, alcohol based fuel and chemical combustible waste liquid, etc. According to the different viscosity of fuel, the burner adopts pressure atomization and medium atomization respectively, so that the fuel can achieve the best atomization effect and realize the ideal combustion. The products are widely used in industrial boilers, industrial kilns, desulfurization and denitrification flue direct combustion furnace and other hot furnaces.
Product Introduction

1.Product introduction

Oil burner refers to the burner in liquid state. Liquid fuels include light diesel oil, heavy oil, residue oil, biomass fuel, alcohol based fuel and chemical combustible waste liquid, etc. According to the different viscosity of fuel, the burner adopts pressure atomization and medium atomization respectively, so that the fuel can achieve the best atomization effect and realize the ideal combustion. The products are widely used in industrial boilers, industrial kilns, desulfurization and denitrification flue direct combustion furnace and other hot furnaces.

2.Technical characteristics

• Separate structure is adopted, and the burner, fuel supply system, combustion air system and control system are connected in a certain way.
• PLC+ touch screen control system, the touch screen can display working conditions, fault alarm, memory query and manual visual operation and other man-machine dialogue.
• Equipped with electronic proportional control mode, can realize the full load air-fuel ratio matching reasonable.
• The control program is set up for furnace front purge and back purge. Set up air pressure, fuel pressure, flame monitoring and other multiple safety protection.
•PLC control system can communicate with the central control host computer, accept the instructions of the host computer heavy oil burner configuration to understand the heat and temperature controller and set the low temperature safety interlock, to ensure the combustion effect.

Product parameter introduction

Model
fuel type Light diesel oil Low calorific value10200 kcal/kg  TD-YEF-X*
Heavy oil Low calorific value10000 kcal/kg TD-ZEF-X*
Alcohol-based fuel Low calorific value 5000 kcal/kg  TD-CEF-X*
Biomass fuel oil Low calorific value9000 kcal/kg  TD-SEF-X*
Flammable industrial waste liquid Low calorific value changes greatly, generally not less than 7000 kcal/kg TD-LEF-X*
Adaptive power supply 380V3/N/PE 50Hz or 440V3/N/PE 60Hz
Control method Electronic air-fuel proportional regulation
Control system configuration PLC(Imported brands: SIEMENS, ABB, etc.)
Explosion-proof rating  According to customer on-site requirements
Scope of supply Burner, gas control valve group, combustion fan, ignition assembly and PLC control cabinet
 Note: "X*" in the table is the rated power of the burner, in MW.
Instructions for ordering


Installation precautions
